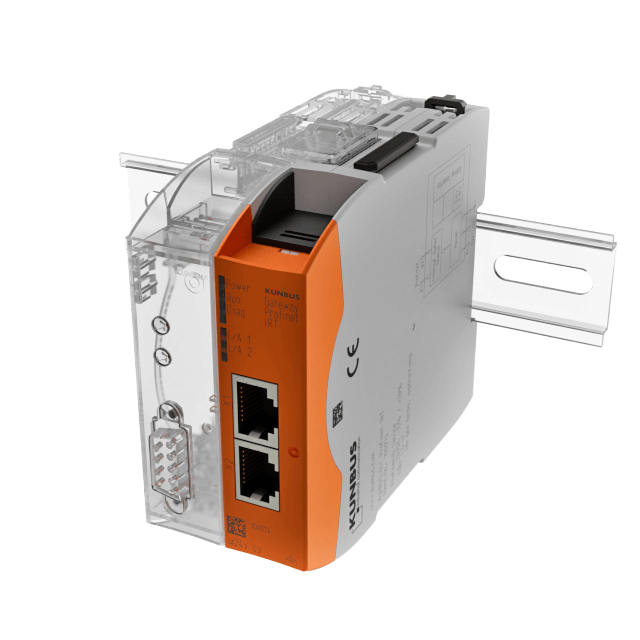

GATEWAY Module for PROFINET IRT

Articlenumber: 100074

Gateway Module for PROFINET IRT network
Specifications

Protocol PROFINET IRT
Module version Slave
Network connector 2 x RJ45
max. baud rate 100 Mbit/s
I/O data 512 Byte IN/OUT
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
Certifications CE, UL (E494534)
