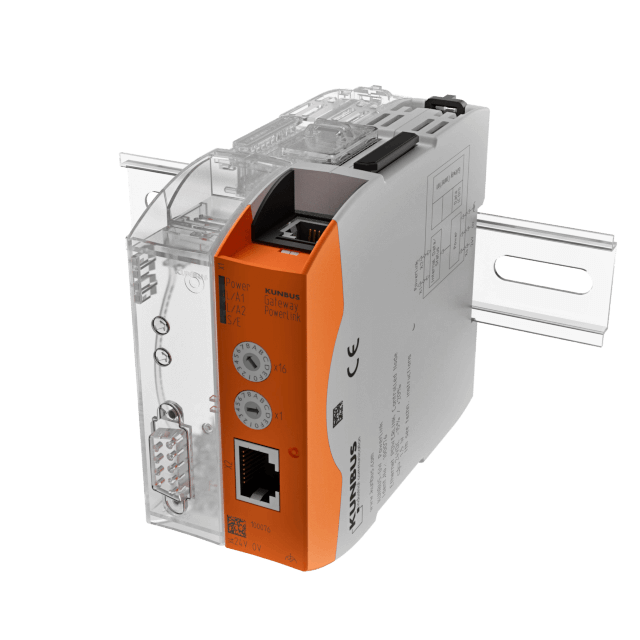

GATEWAY Module for POWERLINK
Articlenumber: 100076
| Specifications | |
|---|---|
| Protocol | POWERLINK |
| Module version | Slave |
| Network connector | 2 x RJ45 |
| max. baud rate | 100 Mbit/s |
| I/O data | 512 Byte IN/OUT |
| Protection class | IP20 |
| Power | 24 V DC (-15/+20 %) |
| Current consumption | 100 mA |
| Dimensions | 110.4 x 22.5 x 101.4 mm |
| Weight | approx. 90 g |
| Reverse voltage protection | Yes |
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
| max. relative humidity (at 40 °C) | 93 % (non condensing) |
| Casing material | Polycarbonate |
| Mounting | DIN rail (EN50022) |
| Certifications | CE, UL (E494534) |
