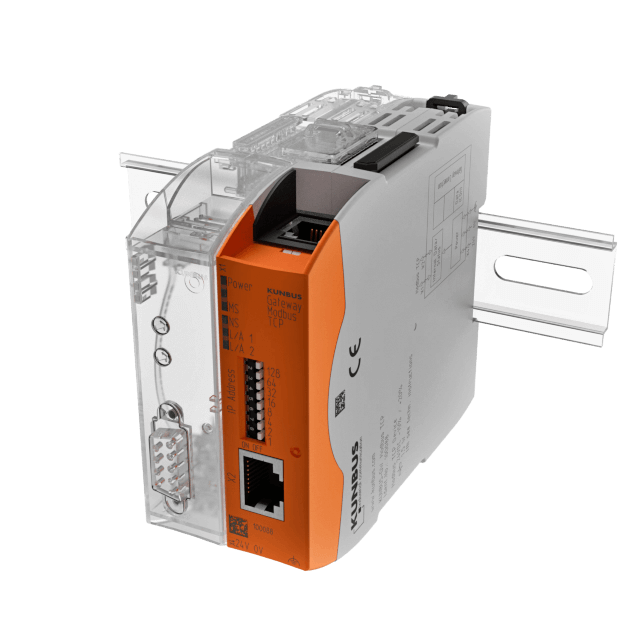

GATEWAY Module for Modbus TCP

Articlenumber: 100088

Gateway Module for Modbus TCP network
Protocol Modbus TCP
Module version Slave
Network connector 2 x RJ45
max. baud rate 10/100 Mbit/s
I/O data 480 Bytes IN/OUT
Protection class IP20
Power 24 V DC (-15/+20 %)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
Certifications CE, UL (E494534)


KUNBUS-GW Modbus TCP User Manual
KUNBUS-GW Modbus TCP Firmware Update R03
