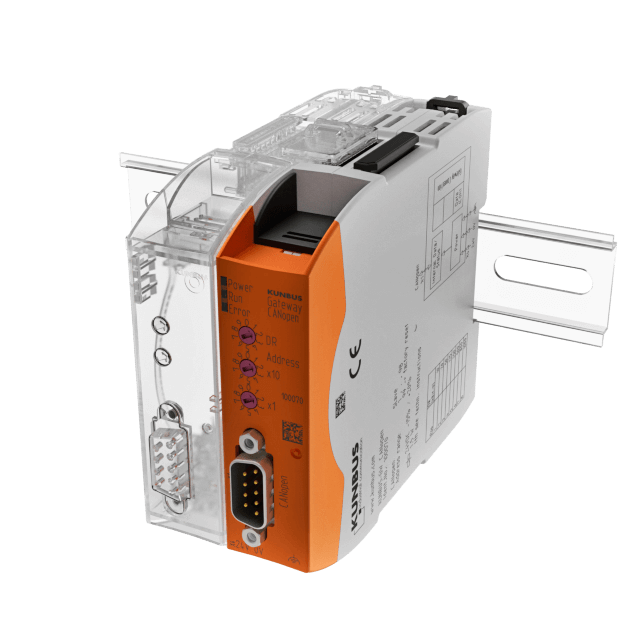

GATEWAY Module for CANopen

Articlenumber: 100070

Gateway Module for CANopen networks
Specifications

Protocol CANopen
Module version Slave
Network connector D-SUB 9M
max. baud rate up to 1 Mbit/s
I/O data 512 Bytes IN/OUT
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25°C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
